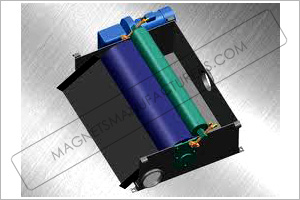

Magnetic coolant separator is a device that cleans the coolant liquid of very fine ferrous particles. It removes the iron chips from the milling or grinding liquid. It is light and compact structure having strong magnetic power that can remove very fine ferrous particles. For precise grinding operations uninterrupted flow of oil is must. The coolant magnetic separator ensures the uninterrupted flow of the liquid.

How it Works?

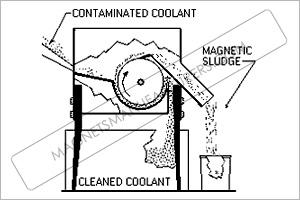

The coolant first passes through the filter to remove course sediments. Later it enters the magnetic inlet of the separator. The coolant drum housing permanent magnets rotates at a very slow speed opposite to the flow of liquid. The strong magnetic poles attract the fine ferrous particles. The scraper at the other end of the machine scraps and collects the captured ferrous particles in a separate box. Sludge build up on chute assembly is prevented by scraper blade that prevents magnetic interference from the drum.

Features :
• A sturdy welded M.S. Frame.
• The Magnets enclosed in Stainless Steel Drum having Powerful An - Isotropic Ferrite Magnets with Uniform Magnetics field all along the Circumference.
• A Neoprene Rubber Roller with Covered bearings.
• A Stainless Steel blade with adjustments for efficient scrapping of the sludge.
• An Electric Motor working 440 V with Reduction Gear revolving the Drum at about 4 RPM.
We are manufacturing Coolant Separators in Standard capacity of 50, 100, 150, & 200 Litres/Min.
