Roller type magnetic separator is meant to separate ferrous contaminants from the flimsy magnetized dry granular metallic and nonmetallic materials. Roller type magnetic separator has wide application in industries and mineral technology. The separator uses high-powered rare earth magnets with very low dimensional tolerance. The other components of the machine are conveyor and vibratory feeder. The PTFE belt of 0.25 mm to 0.50 mm thickness is used to convey the material on the magnetic roll. The magnetic rolls are available in different widths and magnetic strength. A variable speed AC geared motor drive adjustable from 0 to 180 RPM drives the roll.

How it Works?

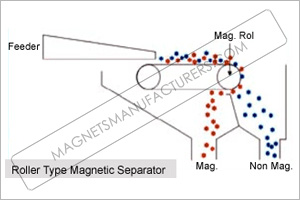

The material is discharge on the belt by the feeder. The conveyor envelops the magnetic roll. The Para and Ferro magnetic ingredients remain stuck to the belt whereas non-magnetic ingredients pass freely at the end of the conveyor.

Applications
Roller type magnetic separator finds applications in the following areas like:
• Glass industries
• Abrasive refractory
• Food industry
• Quartz cleaning
• Upgrading of graphite
• Recovery of metals from slag removal of Ferro silicates
• Chemical industries
